Cyble isn’t just a communication module—it’s Itron’s patented inductive pulse detection system, developed since 1992, that makes smart metering viable in high-risk, high-density environments. Unlike reed-switch or optical sensors, Cyble uses electromagnetic induction to detect flow, rendering it immune to external magnetic fields.
Cyble isn’t just a communication module—it’s Itron’s patented inductive pulse detection system (since 1992) that makes smart metering viable in high-risk, high-density environments. Unlike reed-switch or optical sensors, Cyble uses electromagnetic induction to detect flow, rendering it immune to external magnetic fields.
Completely unaffected by neodymium magnets commonly used to slow or stop mechanical meters. Instantly detects unauthorized access or module removal via integrated anti-tamper switches.
Fully sealed IP68-rated construction operates reliably in flooded meter boxes, high-humidity basements, and outdoor pits. No moving parts = no wear, no calibration drift, no field failures after decades of deployment.
Patented induction principle ensures the digital index always matches the mechanical register exactly—even during backflow or pipe vibration events. Critical for billing integrity and revenue protection.
Standardized interface across all Itron Cyble-ready water and gas meters. Enables seamless upgrades from basic pulse to full AMI without replacing the meter body.
Every device in Itron portfolio is selected not just for accuracy, but for resilience: immunity to magnetic theft, IP68-rated durability in flooded pits, trickle-flow sensitivity for NRW reduction, and flexibility integration into hybrid wired/wireless networks.
Integration with third-party data loggers, SCADA systems, or custom MIUs
Type:
Wired
Protocol Support:
HF (1L/pulse), LF (K-factor configurable), DIR, Cable Cut Detection
Key Differentiator:
2-wire (non-polarized) or 5-wire (polarized) options. Backflow compensation ensures only forward flow is counted. Cable cut detection monitors connection integrity. Not suitable for electro-mechanical relays due to fast pulse duration
High-rise residential, commercial BMS integration, RF-hostile basements

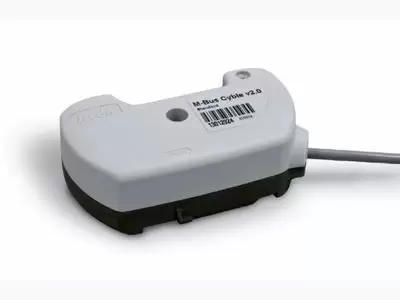

Type:
Wired
Protocol Support:
EN 13757-2/3 compliant
Key Differentiator:
Deterministic wired communication with zero latency. Tamper-proof security via non-magnetic target. Seamless integration with existing building automation systems.
Retrofitting existing Itron meters without wiring. Future-proof migration path from drive-by reads to full AMI
Type:
Wireless Clip-On
Protocol Support:
Hybrid AMR/AMI: wM-Bus + LoRaWAN/Sigfox/OMSv4
Key Differentiator:
Simple installation upgrade: snaps onto meter in seconds. 15-year battery life. Dual-mode operation ensures data continuity if one network fails. IP68 rated for confined meter boxes.
For challenging RF deployed water meters needing better connectivity. Support Third-party meter connectivity
Type:
Wired Extender
Protocol Support:
Pulse output extension (HF/LF/DIR)
Key Differentiator:
Supports open-collector pulse signals (min. 15ms ON/OFF). Preserves mechanical integrity while enabling digital connectivity. IP68 male connector for harsh environments.
Beyond simple consumption reading, Cyble modules deliver an extended dataset that powers advanced water management:
Continuous low-flow alerts identify customer-side leaks before they become costly losses.
Quantifies reverse flow volumes to assess water quality risks and sanitary hazards.
Instant notifications for magnet attacks, module removal, or blocked meter conditions.
High resolution logging enables time-of-use billing and demand pattern analysis.
Battery level monitoring, clock synchronization, and freeze risk warnings ensure sustained network health.
